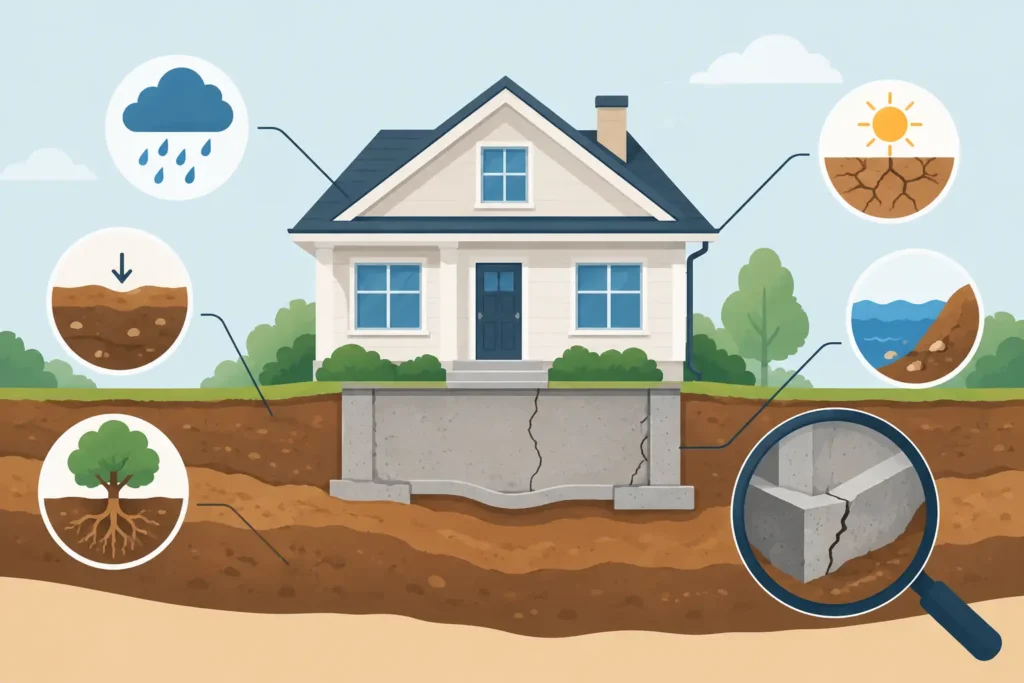

A floor level that changes by a few millimetres may be operationally irrelevant. The same movement, if concentrated beneath one end of a frame or beside a sensitive tunnel interface, can cause cracking, distortion, loss of bearing alignment or serviceability failure. Foundation settlement is therefore not simply a question of how far a foundation moves. It is a question of where, when and how that movement develops, and how the structure responds.
For practising engineers, the useful distinction is between ground deformation and structural consequence. Soils deform under changes in effective stress. Structures redistribute load, bridge local soft zones to some extent, and impose their own stiffness on the soil-structure system. A credible assessment needs both sides of that interaction.
What foundation settlement means in practice
Foundation settlement is the downward vertical displacement of a foundation caused by deformation of the supporting ground. It may occur during construction, shortly after loading, or over decades. The calculated total settlement is necessary, but it is rarely the only result that governs design.
Differential settlement, angular distortion and relative displacement between supports often have greater practical significance. A uniformly settling raft can tolerate a larger vertical movement than a lightly framed building with isolated pads founded across variable fill and natural clay. Likewise, a structure connected to rigid utilities, adjacent buildings or track systems may have a low tolerance for relative movement even when its primary frame remains adequate.
Settlement should also be separated from other vertical movements. Excavation-induced heave, seasonal shrink-swell behaviour, dissolution, leakage and volume loss from nearby tunnelling may all produce movements that appear similar in survey data but require different causal models and mitigation measures.
The mechanisms behind foundation settlement
Immediate deformation
Immediate, or undrained, settlement is associated with distortion of the soil skeleton under applied load. It is particularly relevant in saturated clays during rapid loading, but it also occurs in sands, gravels and partially saturated soils. The magnitude depends on stress level, soil stiffness, layer geometry, foundation shape and the distribution of contact pressure.
Using a single elastic modulus can be acceptable for a preliminary estimate, provided its origin and limitations are explicit. In many real ground profiles, however, stiffness is stress dependent, anisotropic and affected by strain level. Small-strain stiffness measured geophysically should not be used directly for working-load settlement without a defensible strain reduction and constitutive interpretation.
Primary consolidation
Primary consolidation occurs when excess pore water pressure dissipates and effective stress increases. Normally consolidated and lightly overconsolidated clays can undergo significant consolidation beneath embankments, rafts, storage tanks and heavily loaded structures. The final magnitude is governed by compressibility and stress history; the rate is governed mainly by drainage path and permeability.
This distinction matters in programme planning. A clay deposit may have an acceptable final settlement but an unacceptable rate of movement during fit-out or operation. Conversely, staged construction or preloading may be used where the ground can be allowed to consolidate before the permanent structure reaches service load.
Secondary compression and long-term effects
Settlement does not necessarily stop when primary consolidation is complete. Organic soils, peat, soft clays and some fills may continue to compress through creep. Long-term groundwater lowering can also raise effective stresses and trigger settlement well after construction. In granular ground, vibration, cyclic loading or a rise in stress may cause densification, while loose saturated sands require separate consideration of liquefaction-related deformation where seismic actions are relevant.
A design model should identify which mechanism is expected to dominate. Combining all movement into an unexplained settlement allowance may conceal the parameters that deserve investigation or monitoring.
Why ground investigation controls the result
Settlement calculations are often presented with precise-looking outputs derived from uncertain ground models. The uncertainty rarely lies in the arithmetic. It lies in the continuity of strata, the selection of representative parameters, groundwater conditions and the history of the site.
A useful investigation must establish the thickness and lateral extent of compressible layers, not merely confirm the material immediately below formation level. A stiff crust over soft clay can produce favourable shallow test results while still transmitting stress to a deeper compressible horizon. Made ground requires particular care because composition, compaction and thickness can vary sharply over short distances.
Laboratory oedometer data, CPT results, pressuremeter testing, SPT correlations and field observations each contribute different evidence. None should be treated as automatically definitive. Oedometer testing can provide direct information on one-dimensional compressibility and preconsolidation stress, but sample disturbance and specimen representativeness must be considered. CPT offers valuable continuous profiling and correlations, while pressuremeter testing can help describe in-situ deformability. The appropriate combination depends on the soil type, project scale, consequences of movement and available access.
Groundwater is equally central. The design water level should reflect seasonal variation, construction dewatering, nearby drainage works and the potential for long-term abstraction. A lowered piezometric level in a confined aquifer can increase effective stress in overlying compressible strata even if the water table seen in a shallow standpipe appears unchanged.
Assessing settlement without false precision
The analysis should match the decision being made. For a lightly loaded, conventional structure on relatively uniform dense sand, a well-selected simplified method may be more transparent and useful than a complex numerical model populated with poorly constrained inputs. For a deep excavation beside existing masonry, a major transport structure or a foundation over layered soft clay, staged construction and soil-structure interaction can justify more detailed modelling.
Whatever method is used, begin with a clear load case. Establish net foundation pressure, construction sequence, excavation effects, temporary loads and any transfer of load from adjacent foundations. Rafts require attention to contact pressure redistribution; piled foundations require consideration of pile settlement, group effects and compression of soil beneath the pile toe level. A piled solution does not automatically remove settlement risk.
The output should include total settlement, differential settlement and the time profile where consolidation is relevant. It should also state the reference level and whether movement includes excavation-induced stress relief. Comparing a calculated gross settlement with an allowable value derived for net loading is a common and avoidable error.
Parameter selection benefits from sensitivity testing. Varying the compressibility, stiffness, groundwater level, layer thickness and applied pressure within plausible ranges often shows which uncertainty dominates the result. This is more informative than reporting a single value to the nearest millimetre. A calculation tool should make assumptions, intermediate values and graphical results easy to inspect, so that engineering judgement remains visible rather than hidden behind an output figure.
Relating movement to structural performance
Allowable settlement is not a universal ground value. It depends on the structural system, foundation arrangement, finishes, services and function of the asset. Brittle finishes may crack at movement levels that a steel frame can accommodate without concern. Machinery foundations may be governed by rotation or vibration performance. Buried pipes can be sensitive to local changes in gradient, while a bridge approach may be governed by differential movement at an expansion joint.
Angular distortion is often used as a practical indicator, but it should not replace a project-specific assessment. The location of settlement matters: sagging and hogging curvature produce different crack patterns and load redistribution. Foundation stiffness, frame continuity and the presence of movement joints all influence the outcome.
For existing structures, observed damage should be assessed alongside measured movement and possible causes. A crack alone does not prove active foundation settlement. Its orientation, width, history, repair record and relation to openings or changes in stiffness need interpretation. Monitoring over time can distinguish an historic event from ongoing deformation.
Monitoring and response during construction
Where predicted movements are material, instrumentation should be designed before construction rather than added after concern arises. Precise levelling points, settlement plates, inclinometers, vibrating-wire piezometers and crack gauges can each answer different questions. The monitoring plan should identify baseline readings, reading frequency, trigger levels, responsibilities and actions.
Trigger levels work best when linked to an observational method. An alert may prompt verification of readings and review of construction activities. An action level may require slowing excavation, changing dewatering arrangements, revising the sequence or implementing additional support. The threshold should account for rate as well as magnitude: a small but accelerating movement can be more significant than a larger stabilised movement.
Mitigation should address the mechanism rather than merely the symptom. Options may include reducing contact pressure with a raft, improving or replacing weak ground, preloading, staged construction, using piles or rigid inclusions, controlling groundwater, or altering the structural arrangement to tolerate movement. Each option carries trade-offs in cost, programme, carbon, constructability and residual risk.
The most dependable settlement assessment is not the one with the most elaborate model. It is the one that connects a defensible ground model, realistic loading sequence, transparent calculations and a clear understanding of what the structure can tolerate. When uncertainty remains, measure the ground behaviour early enough that the project still has choices.
